Twill Weave Wire Mesh

Large inventory, support customization

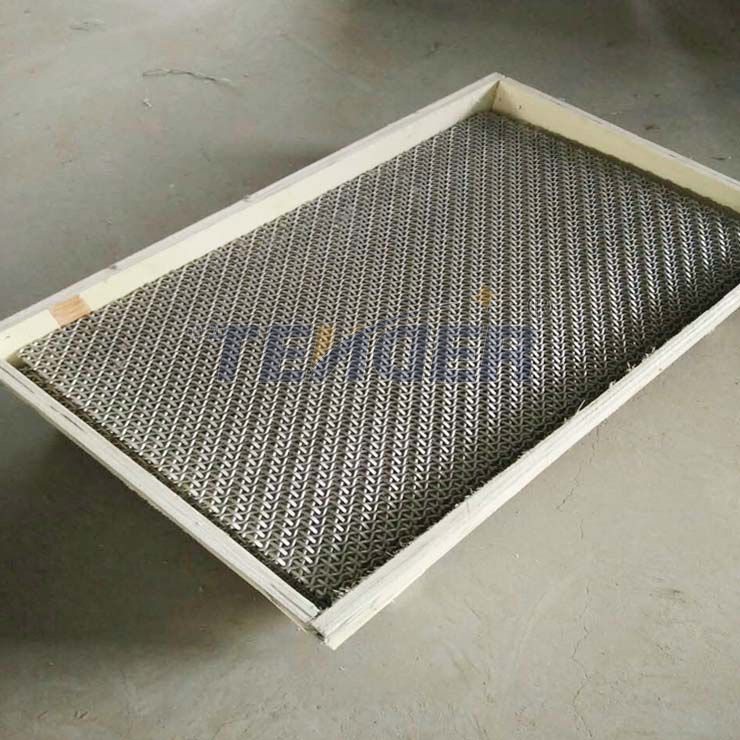

The wires of the weft and the warp inter-cross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines.

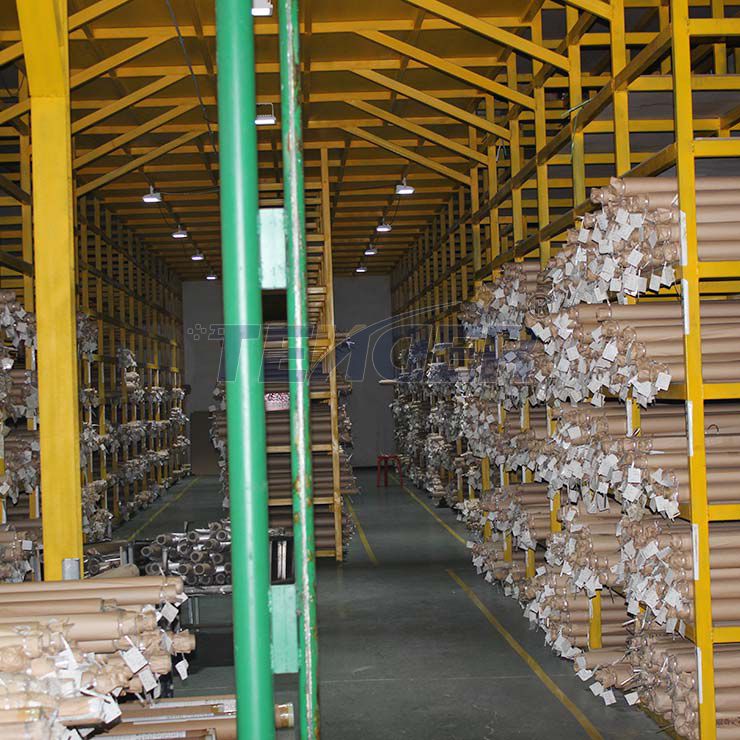

Company advantage: large inventory, can be delivered at any time, support special specifications special customization

Inquire Now Next Product

Description

Twill Weave Wire Mesh Specification parameter

1. Raw material: stainless steel wire 304, 304L, 316, 316L, Alloy.

2. Wire diameter: 0. 015-1. 8mm

3. weaving count: 200mesh -3200mesh

4. Weaving width: 0. 912m、1m、1. 5m、2m、3m、5m、max 8m

5. Weaving length: :usually, manufactured in 30m、50m、80m、100m etc

6. Stainless Steel Wire Mesh Product Features:

Corrosion resistance, anti-acid and wear resistance, anti-high temperature, good filter performance, long using life

Heat, acid, corrosion resistance, wear resistance

7. Min order: 1roll, max order: no limit

8. Stainless steel wire mesh products Net surface: clean, smooth, small magnetic

9. Packaging Details

A: paper tube inside, then water-proof film and plastic film outside
B: wooden box or pallet final.

C: Per roll packs with craft paper + wooden box

D: Special package on request.

10. Application:

Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

This weave allows the use of proportionately heavier wires in a particular mesh count(number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtering.

Mesh Count per Inch	Wire Diameter (mm)	Aperture Size （mm）	Open Area	Weight for Stainless Steel (kg/sq m)
230	0.036	0.074	45%	0.15
250	0.04	0.062	37%	0.2
270	0.04	0.054	33%	0.21
270	0.036	0.058	38%	0.17
300*	0.04	0.045	28%	0.24
300*	0.036	0.055	42%	0.13
325*	0.036	0.042	29%	0.21
325	0.028	0.05	41%	0.13
350*	0.03	0.043	34%	0.16
400*	0.03	0.034	27%	0.18
500*	0.025	0.026	26%	0.16

We are Stainless Steel Woven Mesh manufacturers&Suppliers,We look forward to establishing a long-term relationship with you !Our products are all passed strict inspection to ensure that the products are absolutely qualified .

FAQ

1:Q:Please tell me how to test mesh size and wire diameter method?

A:Hello friend i will give drawing for you , you can clear understand how to test mesh .

2: Q:why choose us ?

A:The company is ISO 9001:2015 certified, On time delivery,

On time response,

Experienced technicians, have many advanced equipment ,Free sample available

3:Q: Are you a manufacturer or a trading company?

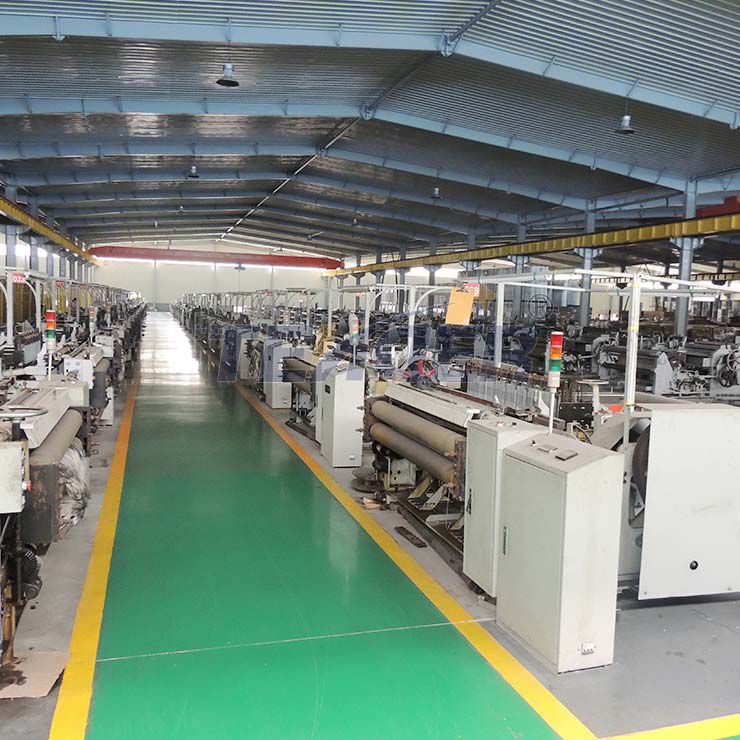

A: We are a professional manufacturer and supplier of stainless steel mesh and sintered filters, first covering an area of about 15,000 square meters,,after have 100 sets weaving machines and have advanced vacuum sintering equipment.

4:Q: How long is your delivery time?

A: If my factory have stock anytime can shipment .

If your want buy mesh different stock mesh , we will help your custom-made it ,generally it is 8-10 days Or it is 15-20 days if the goods are not in stock, it is according to quantity.

5:Q:What kind of payment does your company support?

A: T/T, Paypal,MoneyGram,Western Union at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

6: Q: How can we guarantee the quality?

A: We have advanced quality inspection equipment and professional quality inspection personnel; always pre-production samples before mass production and final inspection before shipment.

7:Q: Do you provide OEM service?

A: Yes, we provide OEM and ODM service.
