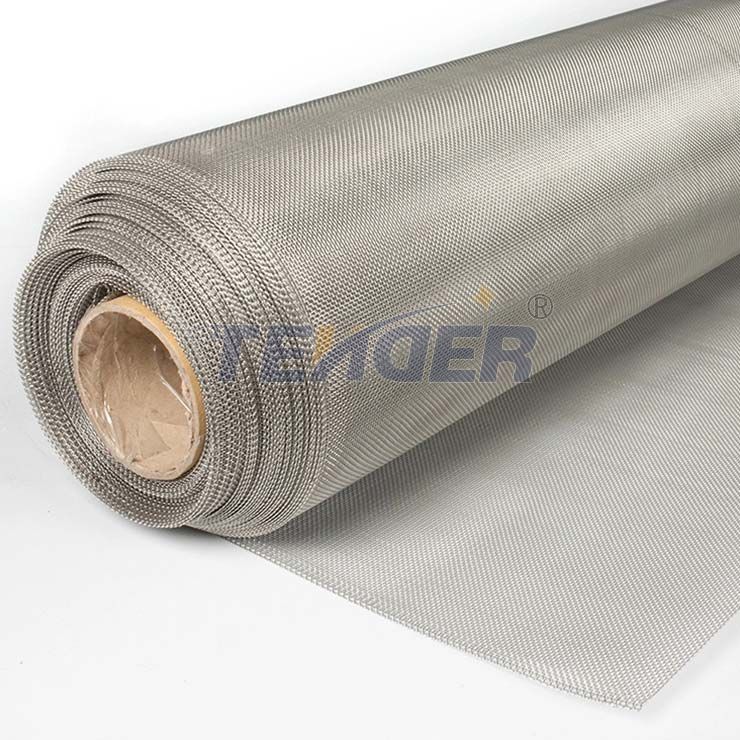

Plain Weave Wire Mesh

Large inventory, support customization

One of the most common preparation methods in industrial production and civil life has been widely used, The main characteristic is the same density of the warp and zonal wire diameters

Company advantage: large inventory, can be delivered at any time, support special specifications special customization

Inquire Now

Description

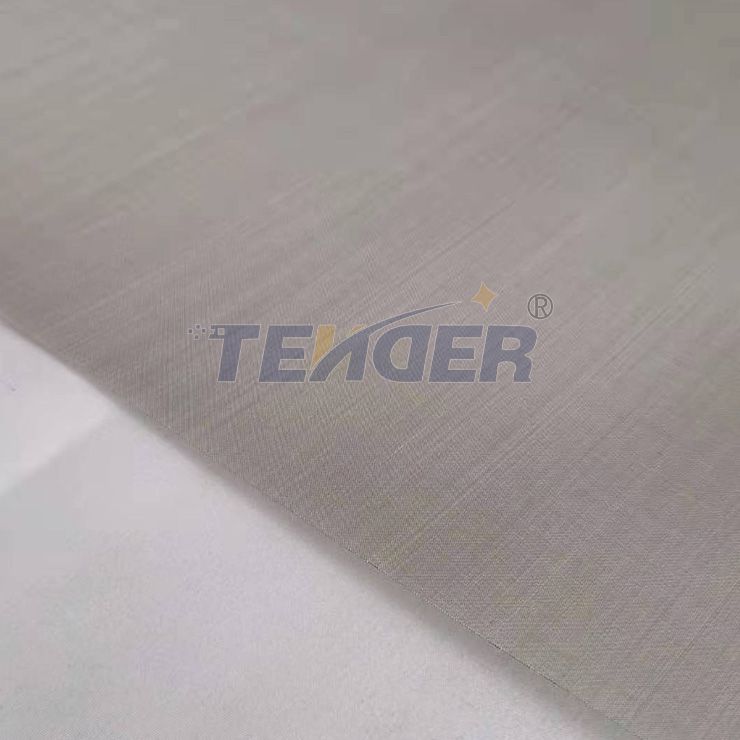

The Plain Weave Mesh is also called square weave wire mesh and is the most commonly used weave.

Plain Weave Wire Mesh Specification parameter

1.Raw material: SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.

2.Wire diameter: 0.015-1.8mm

3.Weaving count: 1mesh -635mesh

4.Weaving width: 190mm, 915mm, 1000mm, 1245mm to 1550mm （can made-custom it ）

5.Weaving length: usually, manufactured in 30m ( up to 200m) long

Plain Weave Mesh Features:

1. Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection.

2. The mesh surface is smooth, clean and free of dirt

Application:

Plain weave mesh can be used in many fields:

For screening and filtration in acid and alkali environment, as mud mesh in petroleum industry, as screen filter in chemical fiber industry, as pickling mesh in electroplating industry, for gas and liquid filtration and separation of other media.

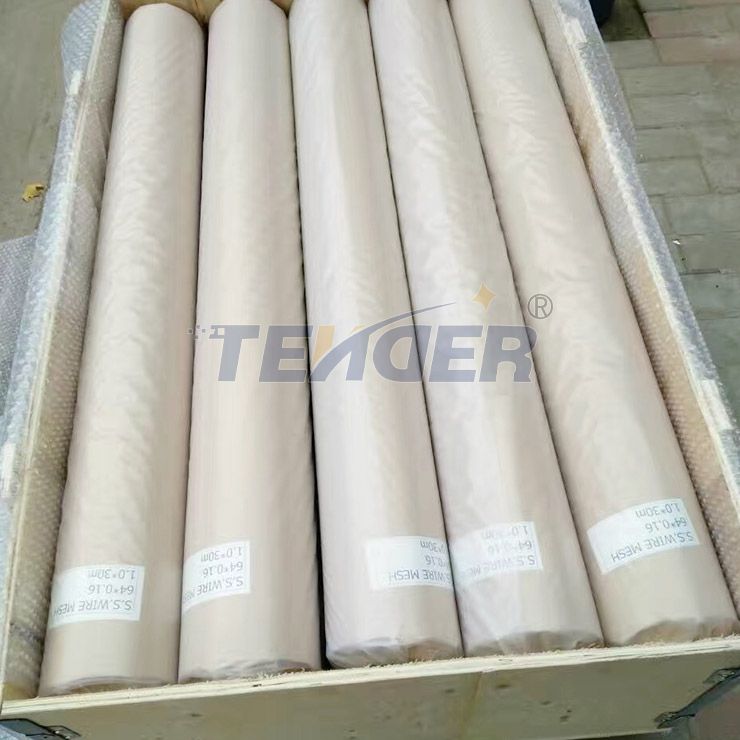

Packaging Details

A: paper tube inside, then water-proof film and plastic film outside
B: wooden box or pallet final.

C: per roll packs with craft paper + wooden box

D: special package on request.

Plain Weave Wire Mesh

Product Tables

	WIRE DIASMETER		APERTURE/ OPENING		OPEN AREA
	WIRE DIASMETER		APERTURE/ OPENING		OPEN AREA
MESH	INCH	MM	INCH	MM	%
1X1	0.08	2.03	0.92	23.37	84.6
2X2	0.063	1.6	0.437	11.1	76.4
3X3	0.54	1.37	0.279	7.09	70.1
4X4	0.63	1.6	0.187	4.75	56
5X5	0.47	1.19	0.203	5.16	65.9
6X6	0.41	1.04	0.159	4.04	63.2
8X8	0.028	0.71	0.097	2.46	60.2
10X10	0.025	0.64	0.075	1.91	56.3
12X12	0.023	0.584	0.06	1.52	51.8
12X12	0.02	0.508	0.063	1.6	57.2
14X14	0.023	0.584	0.048	1.22	45.2
14X14	0.02	0.508	0.051	1.3	51
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.423	0.0386	0.98	48.3
20X20	0.02	0.508	0.03	0.76	36
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.277	0.86	46.2
30X30	0.013	0.33	0.0203	0.52	37.1
30X30	0.012	0.305	0.0213	0.54	40.8
30X30	0.012	0.305	0.0213	0.54	40.8
30X30	0.009	0.229	0.243	0.62	53.1
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.009	0.229	0.011	0.28	30.3
50X50	0.008	0.203	0.012	0.31	36
60X60	0.0075	0.191	0.0092	0.23	30.5
60X60	0.007	0.178	0.0097	0.25	33.9
70X70	0.0065	0.165	0.0078	0.2	29.8
80X80	0.0065	0.165	0.006	0.15	23
80X80	0.0055	0.14	0.007	0.18	31.4
90X90	0.005	0.127	0.0061	0.16	30.1
100X100	0.0045	0.114	0.0055	0.14	30.3
100X100	0.004	0.102	0.006	0.15	36
100X100	0.0035	0.089	0.0065	0.17	42.3
110X110	0.004	0.1016	0.0051	0.1295	30.7
120X120	0.0037	0.094	0.0064	0.1168	30.7
150X150	0.0026	0.066	0.0041	0.1041	37.4
160X160	0.0025	0.0635	0.0038	0.0965	36.4
180X180	0.0023	0.0584	0.0033	0.838	34.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6
250X250	0.0016	0.0406	0.0024	0.061	36
270X270	0.0016	0.0406	0.0021	0.0533	32.2
300X300	0.0051	0.0381	0.0018	0.0457	29.7
325X325	0.0014	0.0356	0.0017	0.0432	30
400X400	0.001	0.0254	0.0015	0.37	36
500X500	0.001	0.0254	0.001	0.0254	25
635X635	0.0008	0.0203	0.0008	0.0203	25

Please contact our technicians and we will help you choose the right mesh.

We are Stainless Steel Woven Mesh manufacturers&Suppliers,We look forward to establishing a long-term relationship with you !Our products are all passed strict inspection to ensure that the products are absolutely qualified .

FAQ

1:Q:Please tell me how to test mesh size and wire diameter method?

A:Hello friend i will give drawing for you , you can clear understand how to test mesh .

2: Q:why choose us ?

A:The company is ISO 9001:2015 certified, On time delivery,

On time response,

Experienced technicians, have many advanced equipment ,Free sample available

3:Q: Are you a manufacturer or a trading company?

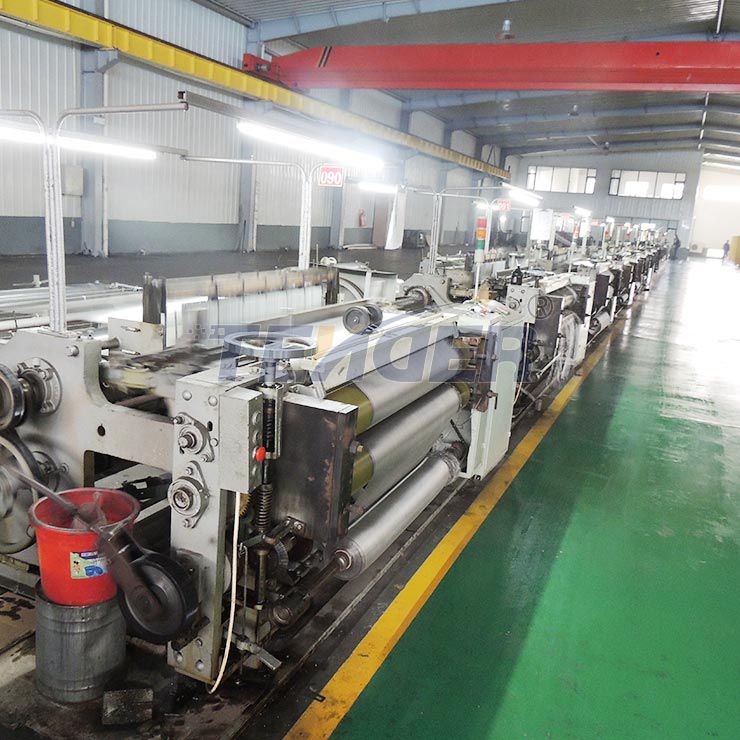

A: We are a professional manufacturer and supplier of stainless steel mesh and sintered filters, first covering an area of about 15,000 square meters,,after have 100 sets weaving machines and have advanced vacuum sintering equipment.

4:Q: How long is your delivery time?

A: If my factory have stock anytime can shipment .

If your want buy mesh different stock mesh , we will help your custom-made it ,generally it is 8-10 days Or it is 15-20 days if the goods are not in stock, it is according to quantity.

5:Q:What kind of payment does your company support?

A: T/T, Paypal,MoneyGram,Western Union at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

6: Q: How can we guarantee the quality?

A: We have advanced quality inspection equipment and professional quality inspection personnel; always pre-production samples before mass production and final inspection before shipment.

7:Q: Do you provide OEM service?

A: Yes, we provide OEM and ODM service.
